Pièces de fixation et de montage

Passes-fils

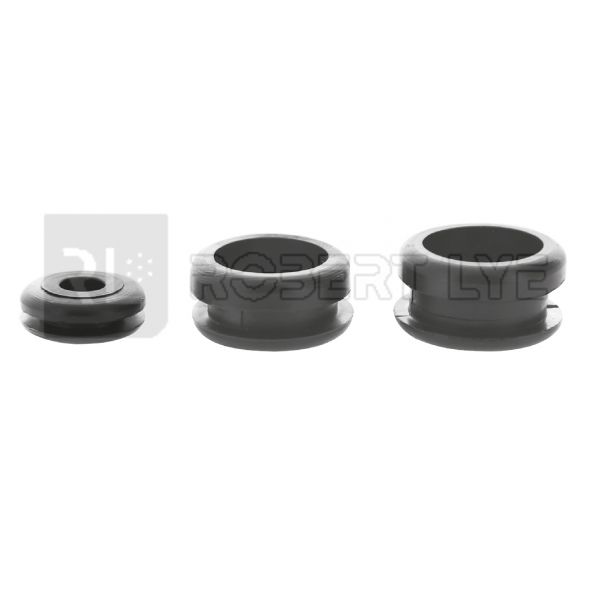

Passe-fils

- Matière PVC noir souple (60/65 shore A)
- Température d'utilisation : -40°C à + 70°C
- Bonne résistance aux U.V., acides et solvants
- Excellente résistance aux alcalins
- Autoextinguible
- Résistance mécanique / allongement : 400%
- Pour tôles épaisseur 2 à 6 mm
- Conditionnement 100 pièces

Pour les dimensions A-B-C-D-E voir le schéma accompagnant la photo du produit

Télécharger cette page au format PDF

PLAN

Les références de ce produit

Référence	Pour tôle épaisseur	Dimmensions passes-fils (mm)	Page Catalogue	Article épuisé	Documents	Photo
188410	2 mm	A = 15 - B = 10 - C = 5 - D = 7 - E = 2	261
188411	2 mm	A = 19 - B = 13 - C = 6 - D = 7 - E = 2	261
188412	2 mm	A = 19 - B = 13 - C = 7 - D = 7 - E = 2	261
188414	2 mm	A = 19 - B = 13 - C = 9 - D = 7 - E = 2	261
188415	2 mm	A = 19 - B = 15 - C = 10 - D = 7 - E = 2	261
188418	2 mm	A = 25 - B = 17 - C = 14 - D = 10 - E = 2	261
188419	2 mm	A = 25 - B = 18 - C = 16 - D = 10 - E = 2	261
188420	2 mm	A = 25 - B = 20 - C = 18 - D = 10 - E = 2	261
188421	2 mm	A = 35 - B = 25 - C = 20 - D = 13 - E = 2	261
188423	2 mm	A = 45 - B = 35 - C = 30 - D = 10 - E = 2	261
188424	4 mm	A = 15 - B = 10 - C = 5 - D = 9 - E = 4	261
188425	4 mm	A = 15 - B = 10 - C = 6 - D = 9 - E = 4	261
188426	4 mm	A = 15 - B = 10 - C = 7 - D = 9 - E = 4	261
188427	4 mm	A = 19 - B = 13 - C = 8 - D = 9 - E = 4	261
188429	4 mm	A = 19 - B = 13 - C = 10 - D = 9 - E = 4	261
188430	4 mm	A = 25 - B = 17 - C = 10 - D = 12 - E = 4	261
188431	4 mm	A = 25 - B = 17 - C = 12 - D = 12 - E = 4	261
188432	4 mm	A = 25 - B = 17 - C = 14 - D = 12 - E = 4	261
188434	4 mm	A = 25 - B = 20 - C = 18 - D = 12 - E = 4	261
188436	4 mm	A = 35 - B = 29 - C = 25 - D = 15 - E = 4	261
188438	6 mm	A = 19 - B = 13 - C = 6 - D = 11 - E = 6	261
188440	6 mm	A = 19 - B = 13 - C = 8 - D = 11 - E = 6	261
188441	6 mm	A = 19 - B = 13 - C = 9 - D = 11 - E = 6	261
188442	6 mm	A = 19 - B = 13 - C = 10 - D = 11 - E = 6	261
188444	6 mm	A = 25 - B = 17 - C = 14 - D = 14 - E = 6
188445	6 mm	A = 25 - B = 20 - C = 18 - D = 14 - E = 6	261
